1、用途及適用范圍

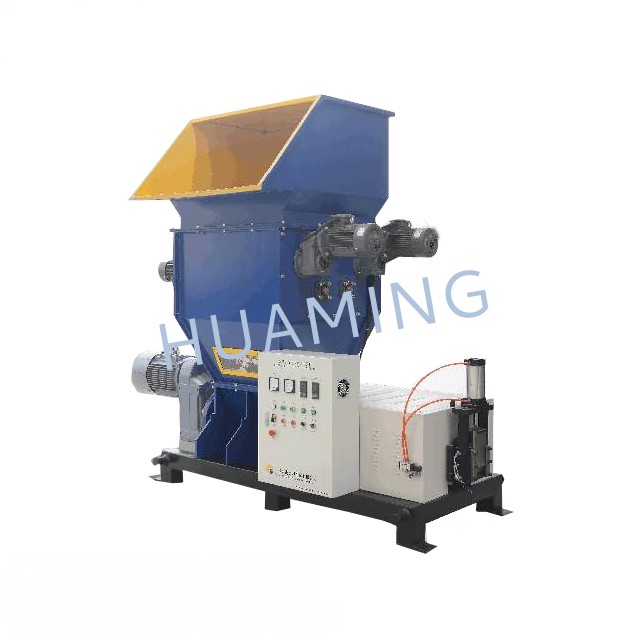

廢舊泡沫制品熱熔機中使用雙軸破碎刀，能將發泡聚苯乙烯物料有效的破碎成較小的物塊，進入篩網。不能進篩網物料進一步破碎，落入篩網，再進入主機經螺桿高速旋轉，將破碎物料輸送到錐形筒體及圓形筒體，經云母加熱器加熱物料熔融，再將熔融物料繼續輸送到成型方形口模，物料開始降溫，從口模擠出方形回收物體，根據所需長度，由切割機自動切斷便完成生產過程。
2、設備參數
規格Model | CF-HM-100 | CF-HM-200 | CF-HM-400 |
進料口Feeding Size | 650mmx400mm | - | |
螺桿直徑 Screw Diameter | φ138mm | φ197mm | φ250mm |
螺桿長度 Screw Length | 1090mm | 150mm | 180mm |
螺桿轉速 Screw Speed | 165rpm | 110rpm | 150rpm |
擠出中心高度 Extrusion center height | 250mm | 326mm | 366 mm |
加熱功率 Heating power | 2 zones,3kw | 3 zones total 10KW | 3 zones total 14kw |
主功率 Main motor power | 7.5KW | 15KW | 22KW |
破碎功率 Crusher Motor | - | 2.2KWx2 | 2.2KWx4 |
篩網大小 Screen Size | 40mm | 40mm | 50mm |
刀片數量 Blades quantity | 9 sets | Twin screw 11sets+10sets | Four screw 11sets+10sets+11sets+10sets |
刀片轉速 Blades rotation speed | 150rpm | 100rpm | 100rpm |
大小Size | 1200x1200x1800mm | 2800x1580x1950mm | 3400×1880×2550 |
重量Weight | 800kg | 1400kg | 1800kg |
產量Capacity | 50kg/h | 100-120kg/h | 160-220kg/h |
